An Introduction to:

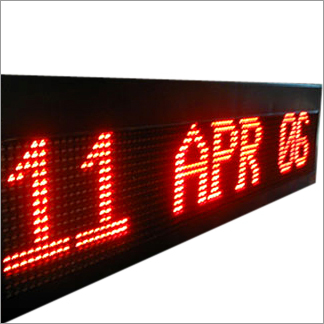

L.E.D. MOVING DISPLAY BOARD 7 x 90

(L.E.D. = LIGHT EMITTING DIODE)

L.E.D. Color used in this Board: RED

Other Colors that can be offered are: Green, Blue and Variant

L.E.D. MOVING DISPLAY BOARD 7 x 90 is designed to print messages, logos and slogans cum advertisement on an electronic board that has a block of L.E.D. used in (7 x 90) pattern. The board uses 90 L.E.D. Indicators in a Line and there are 7 such lines. This combination of 630 (7 x 90) powerful L.E.D. emits enough light to display the stored contents visible clearly from the distance range up to 25 meter.

The Board can be used for self-advertisement in the form of Banners in Shops, Offices, Hotels, Pubs, Traffic Signals, Cinemas, Cricket Match Score Board and Parks etc from a suitable distance.

 Salient Features of L.E.D. MOVING DISPLAY BOARD 7 x 90

The attractive features are:

• English fonts writing Facility via Computer Keyboard

• 3 Different Style fonts available

• Pioneer with 16 attractive special effects

• Specially Designed Symbols to meet user specifications such as Mobile, Heart, Christmas tree. New Symbols can be added as on user?s demand

• Easy Operation on Board fully Keyboard Controlled

• Low Power Consumption - operated on12V DC Battery

• May be available in Three Different colors of L.E.D. Red, Green or Blue (On Order/Demand).

• On Customer requirement, A board can be designed that can change colors



Attention Please:

Another version of this Board is also available in this segment:

L.E.D. MOVING DISPLAY BOARD 16 x 90 (1440 L.E.D.)

The attractive features are:

• Hindi, English, Punjabi fonts writing Facility

• Date, Time, Temperature & Humidity Display

• More visibility due wide size from large distance.

• Rest features are same as of 7x90 Display Board

WORKING PRINCIPLE OF L.E.D. MOVING DISPLAY BOARD 7 x 90

• This board contains 16 Chapters ranging from 1 to 16. Each chapter is enriched with a special effect say Wipe up or Wipe down etc.

•  In single chapter there 14 Pages ranges from 1 to 14 where user can insert /feed /type the advertisement via keyboard (operation manual given ahead).

•  Each page can store 6 to 16 Characters depending on the size/ style of font selected. The user is limited by the number of characters that fits in single page.

• A special Chapter No. 0 has been introduced which has 7 Pages in which User can store long character advertisement where limit of characters has been revoked. This page displays the long advertisement in scrolling from Left side effect.

•  The data that user inputs once via keyboard is stored inside internal memory of Board and advertisements plays automatically as they were stored into memory when it gets electricity power.
